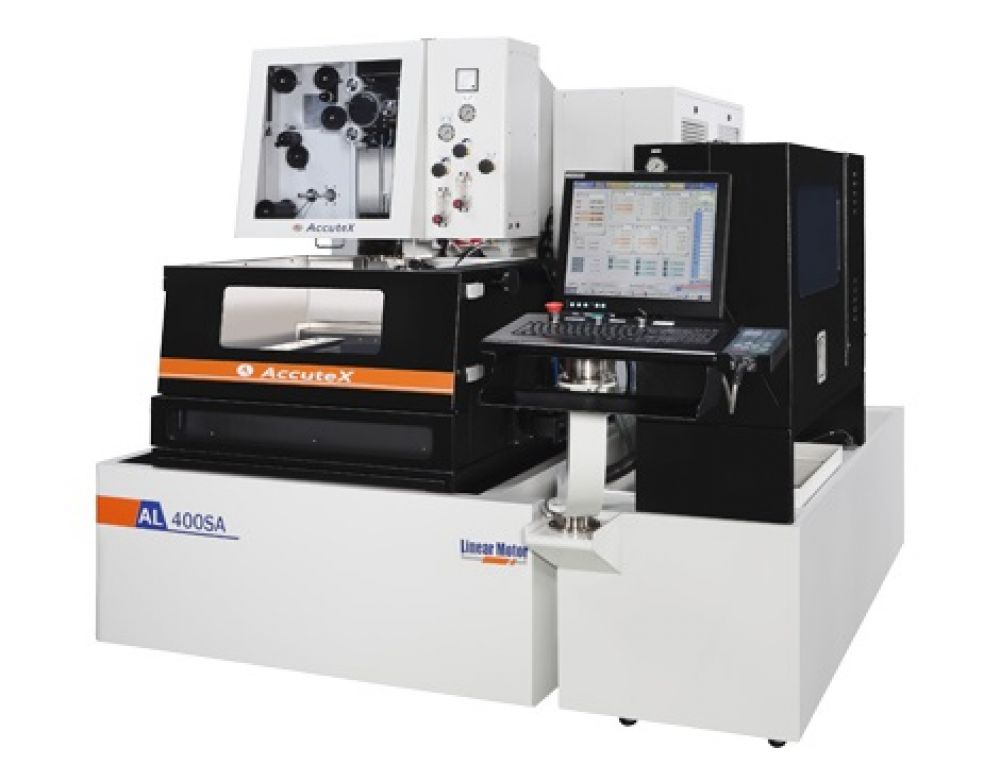

ACCUTEX AL-400SA
Features
- Linear Shaft Motor
- Rapid servo control, enhancement of sensitivity in discharge gap control. Improving cutting speed up to 8~10%
- 1/1000 High Resolution Signal Process
- High reolution in linear scale, achieve more smooth velocity control, and enhance the stability of position control, best match up contouring accuracy
- Stable Discharge Board (SD-Master)
- Irregular Thickness Cutting
- The AccuteX Intelligent discharge unit is capable of dealing with the changing conditions in workpiece thickness and water flushing situations featuring high cutting speed, and free from wire breaking problems
- PCD Cutting & Graphite Machining Power supply
- The collapse of workpiece edge by wire cut can be controlled with minimum range along with high speed machining
| SPECIFICATION | AL-400SA |
|---|---|
|
Max. Work Piece Size L x W x H (mm)
|
790x610x215
|
|
Max. Work Piece Weight (kg)
|
400kg
|
|
X x Y stroke (mm)
|
400 x 300 mm
|
|
U x V Stroke (mm)
|
100 x 100 mm
|
|
Z Stroke (mm)
|
220
|
|
Max. Cutting Taper(H=100)
|
±21°
|
|
Wire Spool Weight (Kg)
|
10
|
|
Footprint (mm)W x D x H
|
2051 x 2990 x 2070
|
|
Water System Capacity (L)
|
630
|
|
Machine Weight (Kg)
|
300
|
